Stainless steel braided hoses represent engineering marvels that combine flexibility with exceptional durability across numerous applications. These versatile components feature a protective stainless steel mesh covering over various core materials.Creating solutions that meet specific pressure, temperature, and chemical resistance requirements. This comprehensive guide explores the different types of stainless steel braided hoses, their unique characteristics, and how to select the right variant for particular applications. We will examine the construction variations, material combinations, and specialized designs that make these hoses indispensable in industries ranging from residential plumbing to aerospace technology. Understanding the different types ensures proper selection and optimal performance in any system configuration.
Understanding Stainless Steel Braided Hoses: Definition and Key Characteristics

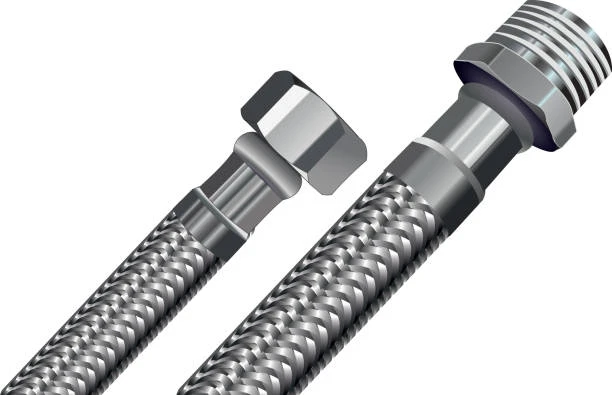

Stainless steel braided hoses consist of three primary components: an inner tube made from various polymer or synthetic materials. One or more layers of woven stainless steel mesh reinforcement, and end fittings typically manufactured from brass, stainless steel, or other durable metals. The stainless steel braiding provides exceptional strength and pressure resistance while maintaining flexibility. Creating a hose that outperforms conventional alternatives in demanding applications. These hoses exhibit remarkable resistance to abrasion, corrosion, and extreme temperatures, making them suitable for diverse operating conditions across multiple industries.
The key characteristics of these hoses vary based on their construction type but generally include excellent flexibility under pressure. Minimal expansion during operation, and superior vibration damping properties. Different types offer varying levels of chemical compatibility, temperature ranges, and pressure capacities. Some feature single braid designs for standard applications, while others incorporate double or even triple braid layers for high-pressure scenarios. The choice of inner liner material significantly influences the hose’s performance characteristics. With options available for specific media including water, oil, chemicals, gases, and food products. End connection types also vary widely, from standard threaded fittings to quick-disconnect and flanged options for specialized applications.
Common Types and Their Applications Across Industries
Single braid stainless steel hoses represent the most common type, featuring one layer of stainless steel mesh over the inner core. These versatile hoses typically handle medium pressure applications and find extensive use in residential and commercial plumbing for appliance connections, faucet installations, and toilet supply lines. The automotive industry utilizes single braid hoses for fuel lines, coolant systems, and air conditioning connections where flexibility and durability are essential. Their relatively lower cost and good flexibility make them popular for general-purpose applications across multiple sectors.
Double braid hoses incorporate two layers of stainless steel mesh, providing enhanced strength and pressure resistance for more demanding applications. Industries employing heavy machinery use these hoses for hydraulic systems, pneumatic controls, and high-pressure coolant lines. Manufacturing plants rely on double braid configurations for industrial equipment requiring reliable performance under constant pressure fluctuations. The additional braiding layer offers extra protection against abrasion and external damage, making these hoses suitable for construction equipment, agricultural machinery, and industrial processing systems where equipment faces harsh operating conditions.
PTFE core stainless steel braided hoses feature a polytetrafluoroethylene inner liner that offers exceptional chemical resistance and high-temperature capability. The chemical processing industry depends on these hoses for transferring aggressive chemicals, solvents, and corrosive materials. Pharmaceutical and food processing facilities utilize FDA-compliant PTFE hoses for product transfer lines and processing equipment where purity and chemical resistance are paramount. These hoses maintain excellent flexibility even in extreme temperature conditions, making them ideal for applications involving heat transfer fluids, steam lines, and cryogenic transfer systems.
Frequently Asked Questions (FAQ) About Stainless Steel Braided Hose Types
What distinguishes single braid from double braid stainless steel hoses?
Single braid hoses feature one layer of stainless steel mesh reinforcement, making them suitable for medium pressure applications with good flexibility. Double braid hoses incorporate two mesh layers, providing significantly higher pressure resistance and enhanced durability for more demanding industrial applications while maintaining reasonable flexibility.
How do I choose between different inner core materials?
Selection depends on your specific application requirements. EPDM cores work well for hot water and steam, NBR handles petroleum-based fluids effectively, and PTFE offers superior chemical resistance and high-temperature performance. Consider the media being transferred, temperature range, and pressure requirements when choosing the appropriate inner core material.
Are there food-grade stainless steel braided hoses available?
Yes, food-grade versions feature FDA-approved inner core materials such as specially formulated PTFE or silicone, along with stainless steel fittings that meet food safety standards. These hoses typically carry appropriate certifications for use in food processing, beverage production, and pharmaceutical applications.
Can stainless steel braided hoses handle extreme temperatures?
Different types offer varying temperature capabilities. Standard EPDM core hoses typically handle -40°F to 250°F (-40°C to 121°C), while PTFE core hoses can withstand -100°F to 450°F (-73°C to 232°C) or higher. Specialized versions are available for extreme temperature applications including cryogenic transfer and high-temperature industrial processes.
What maintenance do different hose types require?
Maintenance requirements vary by type and application. Single braid hoses in residential applications need occasional visual inspection for leaks or damage. Industrial double braid hoses require regular pressure testing and inspection for wear. PTFE core hoses need checks for chemical compatibility and temperature exposure. All types benefit from proper installation without twisting or over-tightening connections.
Conclusion: Selecting the Right Type for Your Application
The diverse range of stainless steel braided hoses offers solutions for virtually every application scenario, from simple residential plumbing to complex industrial systems. Understanding the different types—single braid for general purpose use, double braid for high-pressure applications, and specialized PTFE core hoses for chemical and extreme temperature services—ensures optimal performance and longevity. Each type brings specific advantages in terms of pressure capacity, temperature resistance, chemical compatibility, and flexibility characteristics. The key to successful implementation lies in matching the hose type to the specific application requirements, considering factors such as operating pressure, temperature range, media compatibility, and environmental conditions. As technology advances, new variations continue to emerge, offering enhanced performance characteristics for increasingly demanding applications. By selecting the appropriate stainless steel braided hose type and following proper installation and maintenance practices, users can ensure reliable performance and extended service life across countless industrial, commercial, and residential applications.
